Thread: T45

 Button Shape: Hemispherical

 Size: 89mm in diameter

 Face Configuration: Flat face with drop center

 Number of Buttons: 10 to 15

 Gauge Buttons: 6 or 8

 Front Buttons: 5 or 6

Functions:

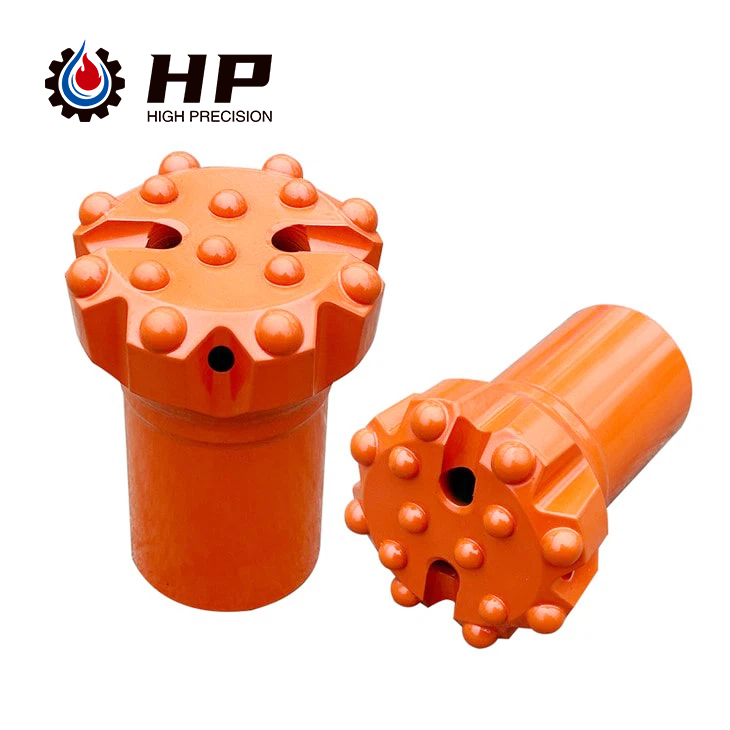

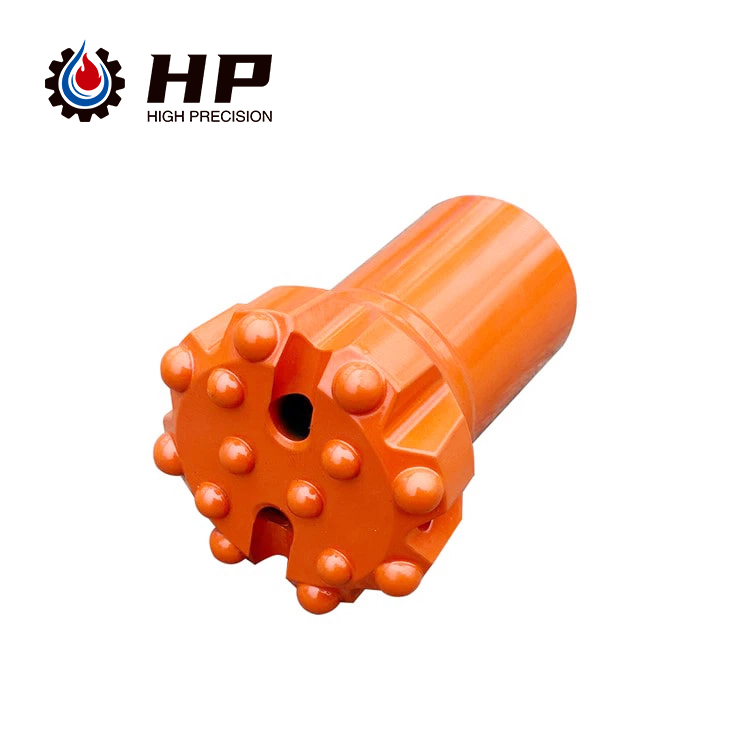

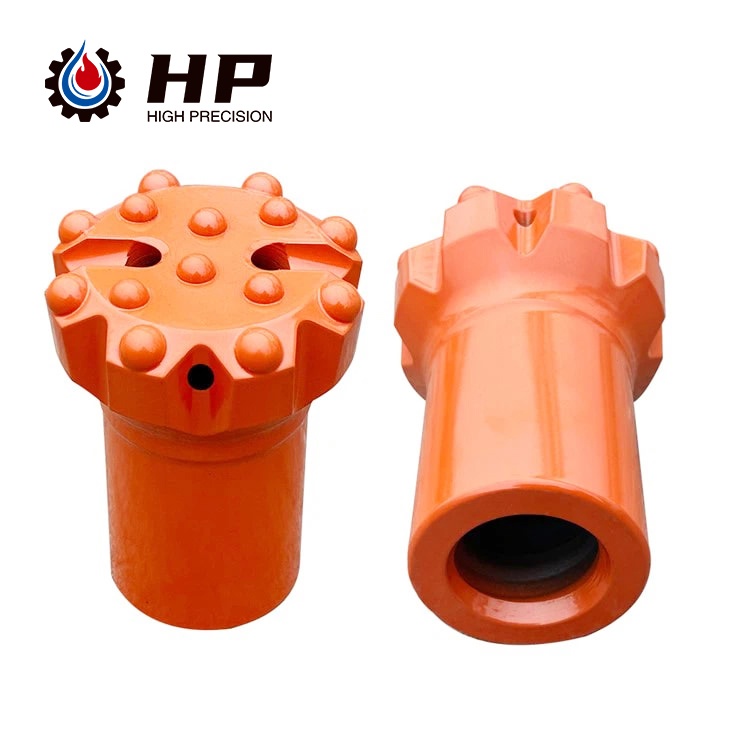

The T45 89mm thread button bit serves as a specialized tool for drilling blast holes in challenging hard rock surfaces. Its design aims to deliver exceptional penetration rates and prolonged durability with minimal wearing. The hemispherical button structure enhances surface contact with the rock, facilitating efficient drilling and reducing overall drilling time.

Features:

Premium tungsten carbide buttons ensure outstanding wear resistance and longevity.

Hemispherical button design enhances drilling efficiency.

Flat face with drop center allows for precise hole positioning and straighter holes.

Strategically spaced buttons promote uniform wear and minimize vibration.

Tailored for demanding drilling environments.

Specifications:

Length: 160mm

Weight: 6.95kg

Torque: 680Nm

Recommended Rotation Speed: 35-40 RPM

Maximum Drilling Depth: 45m

Usage Guidelines:

The T45 89mm thread button bit should be paired with suitable drilling rig equipment. Proper rig setup to uphold optimal drilling conditions, such as water pressure and air quality, is crucial for maximizing bit efficiency. Regular inspections for wear and timely replacement of worn components are essential maintenance practices.

Application Areas:

This bit is versatile and finds application in various drilling tasks within mining, quarrying, and construction industries, predominantly for drilling blast holes in hard rock surfaces.

Safety Measures:

Adhere to manufacturer-recommended operational procedures.

Regularly inspect the bit for wear and replace worn parts promptly.

Utilize appropriate protective gear like ear defenders, eye protection, and dust masks when operating the drilling rig.

Compatible Drilling Rigs:

The T45 89mm thread button bit is compatible with a wide array of drilling rigs from reputable brands including Atlas Copco, Sandvik, and Ingersoll Rand.

In summary, the T45 89mm thread button bit stands as a highly effective and dependable drilling tool suitable for diverse drilling applications. By following manufacturer guidelines and observing safety precautions, operators can ensure safe and efficient operations, resulting in precise drilling, enhanced productivity, and reduced downtime.
