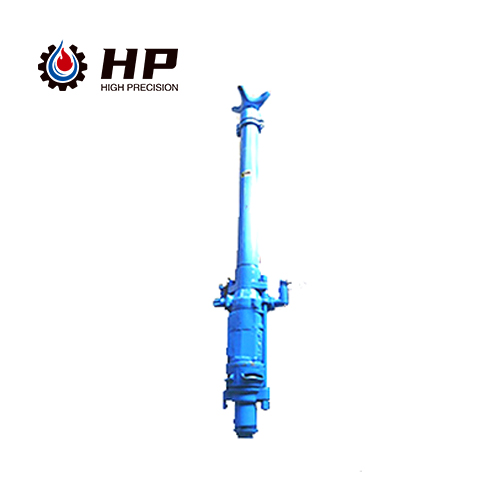

YSP45 Stopper
Equipped with advanced technology and precision engineering, the YSP45 Stopper offers enhanced drilling precision and control. The stopper's ergonomic design and user-friendly controls allow operators to maintain optimal drilling accuracy and consistency, resulting in straighter boreholes and improved drilling efficiency.
The YSP45 Stopper demonstrates versatility and adaptability in a wide range of drilling applications, making it a valuable tool for construction and mining projects. Whether used for surface drilling, bench drilling, or underground operations, the stopper's robust construction and high-performance capabilities enable it to excel in diverse drilling environments.
The YSP45 Stopper prioritizes safety by incorporating features designed to protect operators during rock drilling operations. With ergonomic handles, vibration dampening mechanisms, and safety guards, the stopper minimizes operator exposure to potential hazards such as vibrations, flying debris, and accidental tool slippage.
Specification
DETAILS | PARAMETER |
Weight(kg) | 44 |
Min. Length (mm) | 1420 |
Maz. Length (mm) | 2170 |
Shank size (mm） | H22*108±1 |
Cyinder diameter(mm) | 95 |
Air leg Piston stroke(mm) | 74 |
Piston stroke(mm) | 47 |
Working pressure(Mpa) | 0.4-0.63 |
Impact frequency(Hz) | ≥45(0.5MPa) |
Impact energy(J) | ≥70(0.5MPa) |
Air consumption(L/S) | ≤83(0.5MPa) |
Air hose inner diameter(mm) | 25 |
Water hose inner diameter(mm) | 13 |
Drilling diameter(mm) | 34-42 |
Driliing depth(m) | 6 |
Lubrication | FY500A |
