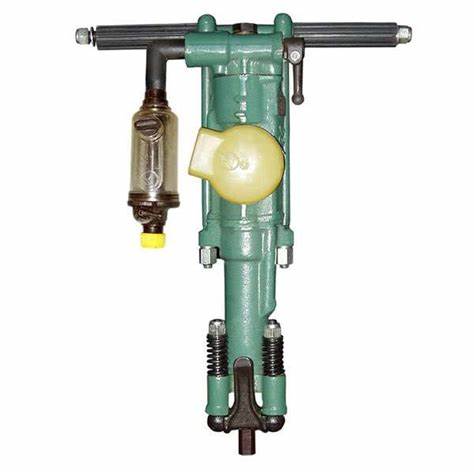

Y24 Jack Hammer
The Y24 Jack Hammer has been carefully designed to take into account the user's needs and operating habits. Its ergonomic design makes it comfortable to hold, less fatiguing to operate and improves work efficiency. At the same time, the structure of the rock drill hammer is well-designed to ensure stability and durability, and is able to withstand prolonged high-intensity use without damage.
Easy to operate: The Y24 rock drill hammer adopts a simple and intuitive operation method, which enables the user to get started quickly without complicated training and guidance. The key operation parts are clearly designed, and the operation procedure is simple and easy to understand, which effectively reduces the possibility of operation errors and improves work efficiency and safety.
Precise control: The Y24 Jack Hammer has a precise control system that allows the user to accurately position and operate the hammer to achieve accurate and consistent drilling. The control system is flexible and adjustable, and can be adjusted according to different rock hardness and drilling requirements, ensuring that the drilling results are as expected, improving work quality and efficiency.
Specification
DETAILS | PARAMETER |
Weight(kg) | 24 |
Length (mm) | 604 |
Shank size (mm） | H22*108±1 |
Drilling diameter(mm) | 34-42 |
Cylinder diameter(mm) | 70 |
Piston stroke(mm) | 70 |
Working pressure(Mpa) | 0.5 |
Rotation(r/min) | 200 |
Impact energy(J) | ≥27 |
Impact frequency(Hz) | ≥27 |
Air consumption(L/S) | ≤55 |
Air hose inner diameter(mm) | 19 |
Water hose inner diameter(mm) | 13 |
